The pressure regulator valve, commonly called a PRV or pressure reducing valve, is the device installed on the main supply line where it enters your Placentia home from the Golden State Water service connection. Its job is to reduce the street supply pressure, which in North Orange County can range from 80 to over 100 pounds per square inch in some distribution zones, down to the 50 to 65 PSI range that residential fixtures and appliances are designed to operate at. A PRV that is functioning correctly is invisible in daily use. A PRV that is failing produces pressure-related symptoms throughout the home that are frequently misdiagnosed as supply line failures or fixture problems.
PRV failures in Placentia take two forms. A PRV that has failed open allows full street pressure into the home's supply system. At 80 to 100 PSI, that elevated pressure accelerates the failure rate of every rubber seal, washer, and diaphragm in the system: toilet fill valves cycle faster and wear sooner, faucet cartridges fail at accelerated rates, water heater pressure relief valves may discharge, and supply connections that held adequately at 60 PSI develop drips at 90 PSI. A PRV that has failed closed produces reduced or no flow at fixtures throughout the home while the street pressure remains normal at the meter. Both failure modes affect the entire supply system simultaneously, which distinguishes a PRV failure from a localized pipe or fixture failure.
If fixtures throughout your Placentia home are dripping simultaneously, if water hammer sounds have increased in intensity, or if flow pressure has dropped uniformly at all fixtures at once, call (714) 750-8637. PRV testing takes under 30 minutes and confirms whether the valve is the system-wide source.
Hard Water and PRV Longevity in Placentia
Golden State Water's groundwater-blend supply deposits scale on the internal diaphragm and seat of the PRV at the same rate it deposits scale on every other water-contact surface in the home. The PRV diaphragm, which is the flexible rubber component that responds to downstream pressure changes and modulates the valve position, accumulates mineral deposits that reduce its flexibility and eventually cause it to hold a fixed position rather than modulating. A scaled-in-open diaphragm delivers full street pressure. A scaled-in-closed diaphragm delivers reduced or no flow. Placentia's 12 to 18 grain hard water means PRV service life is shorter than the 10 to 15 year range manufacturers quote for soft-water installations. Annual pressure testing at the hose bib using a gauge confirms whether the downstream pressure is within the correct range before a failure-mode event occurs.
Whole-house dripping or dramatic pressure drop? PRV testing available same-day.
(714) 750-8637Diagnosing PRV vs. Supply Line Failure

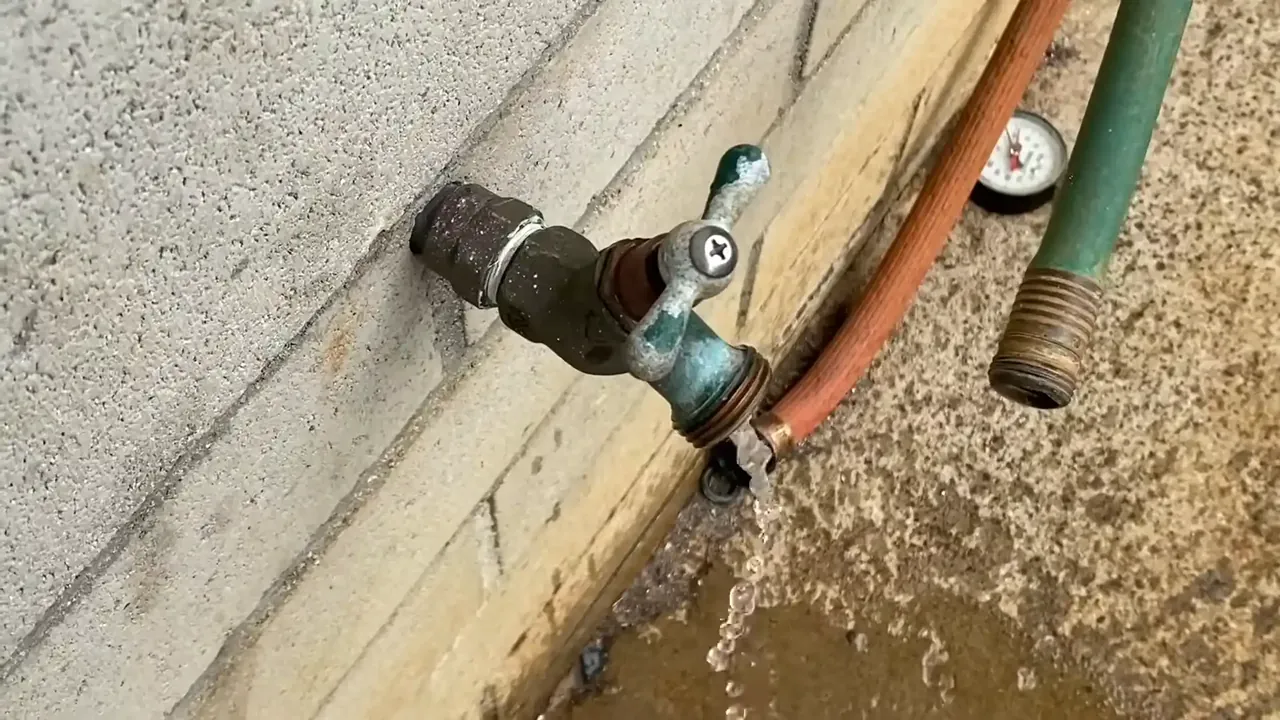

A pressure gauge test at the hose bib nearest to the PRV location confirms downstream static pressure in under five minutes. A reading above 80 PSI with all fixtures closed confirms a PRV that has failed open or is misadjusted. A reading below 40 PSI with normal meter pressure confirms a PRV that has failed closed or is partially scaled. Either reading distinguishes the PRV as the source from a supply line failure, which would produce normal pressure readings at fixtures not on the affected branch. For supply line failures that occur downstream of a functioning PRV, see our water line leak detection page. For the water heater consequences of elevated pressure operation, see our water heater leak detection page. For fixture-level failures driven by pressure spikes, see our pipe leak detection page.
PRV testing, adjustment, and replacement across all Placentia neighborhoods and North OC service areas. Call (714) 750-8637 for same-day pressure testing and PRV service.
| Build Era | Supply & Drain Material | Representative Neighborhoods |
|---|---|---|
| Pre-1950 citrus-era | Galvanized supply lines and cast iron drains | Old Town Placentia, Downtown Placentia, Atwood |
| 1950s to 1960s post-war | Copper supply lines now in deep pinhole-failure range after 60 to 70 years of hard-water exposure | North Placentia, South Placentia, West Placentia, +1 more |
| 1970s to 1980s expansion-era | Copper supply lines in mid-failure range, some polybutylene gray plastic pipe | East Placentia, Bradford Place, Tuffree Park Area, +2 more |
| 1990s and newer | PEX dominant with some copper hybrid, PVC drains | Camino Loma Verde, Sanchez Reservoir Area |
Frequently Asked Questions
How do I know if my PRV is failing?
A PRV failing open produces elevated pressure at hose bibs and fixtures, often over 80 PSI, along with increased water hammer sounds when fixtures are shut off quickly, and accelerated dripping at multiple fixtures simultaneously. A PRV failing closed produces low or no flow at all fixtures with normal meter pressure. A pressure gauge test at the hose bib confirms which condition is present.
Where is the PRV located in a Placentia home?
The PRV is typically located on the main supply line just inside the foundation wall or near the main shutoff valve, often in the garage or utility area near the water meter connection. It is a bell-shaped bronze or brass fitting with an adjustment screw on top, installed inline on the main supply pipe. Some older Placentia homes may not have a PRV installed if the original street supply pressure was below 80 PSI when the home was built.
How long does a PRV last in Placentia's hard water?
PRV manufacturers typically rate their valves at 10 to 15 years in normal water conditions. In Placentia's 12 to 18 grain hard water, scale accumulation on the internal diaphragm and seat reduces effective service life. Annual pressure testing at the hose bib provides the earliest indication of PRV performance degradation before a failure event occurs.
Can I adjust my PRV myself?
PRVs have an adjustment screw on the top of the valve body that changes the downstream set point pressure. Adjustment requires a pressure gauge at the hose bib to confirm the result. If the valve does not respond to adjustment, if turning the screw has no effect on the downstream pressure reading, the internal diaphragm or seat is damaged and adjustment will not resolve the failure. Replacement is required at that point.
